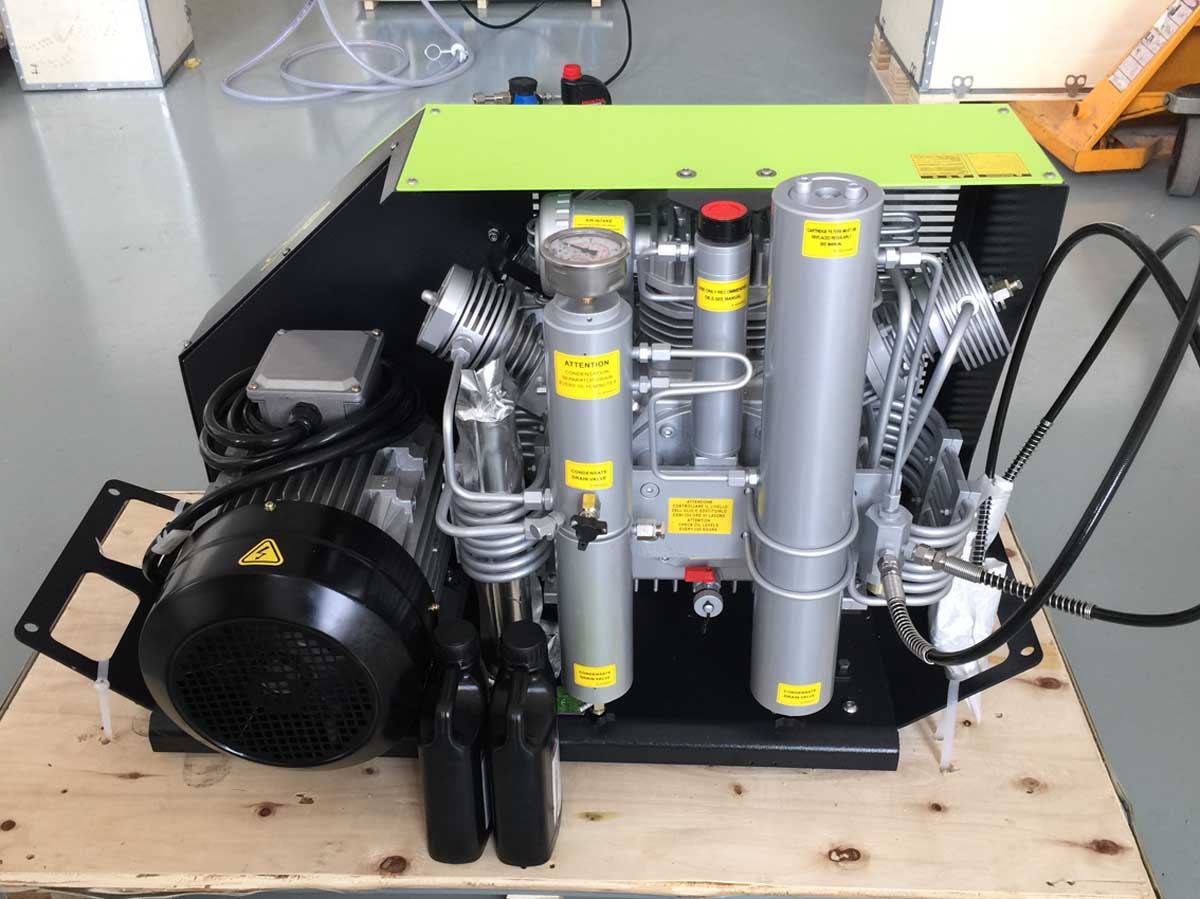

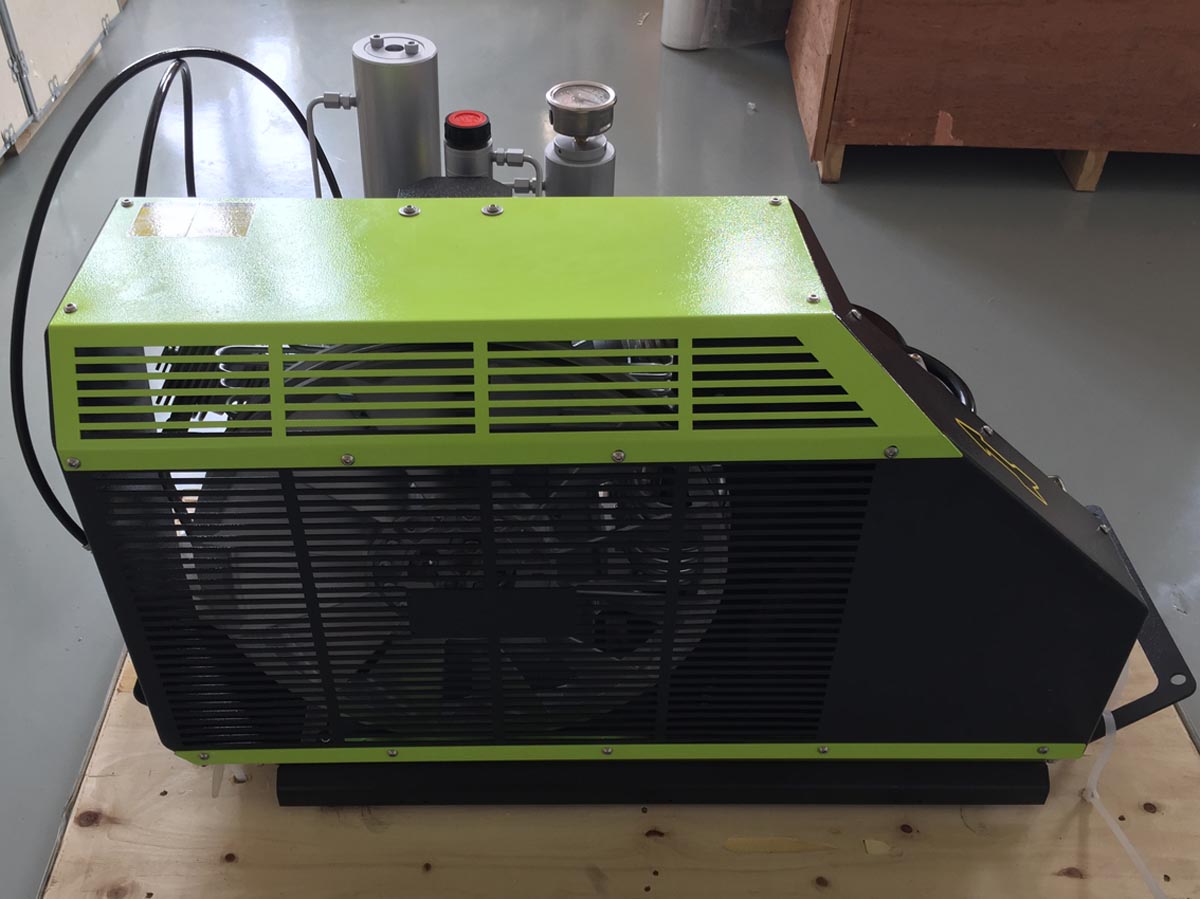

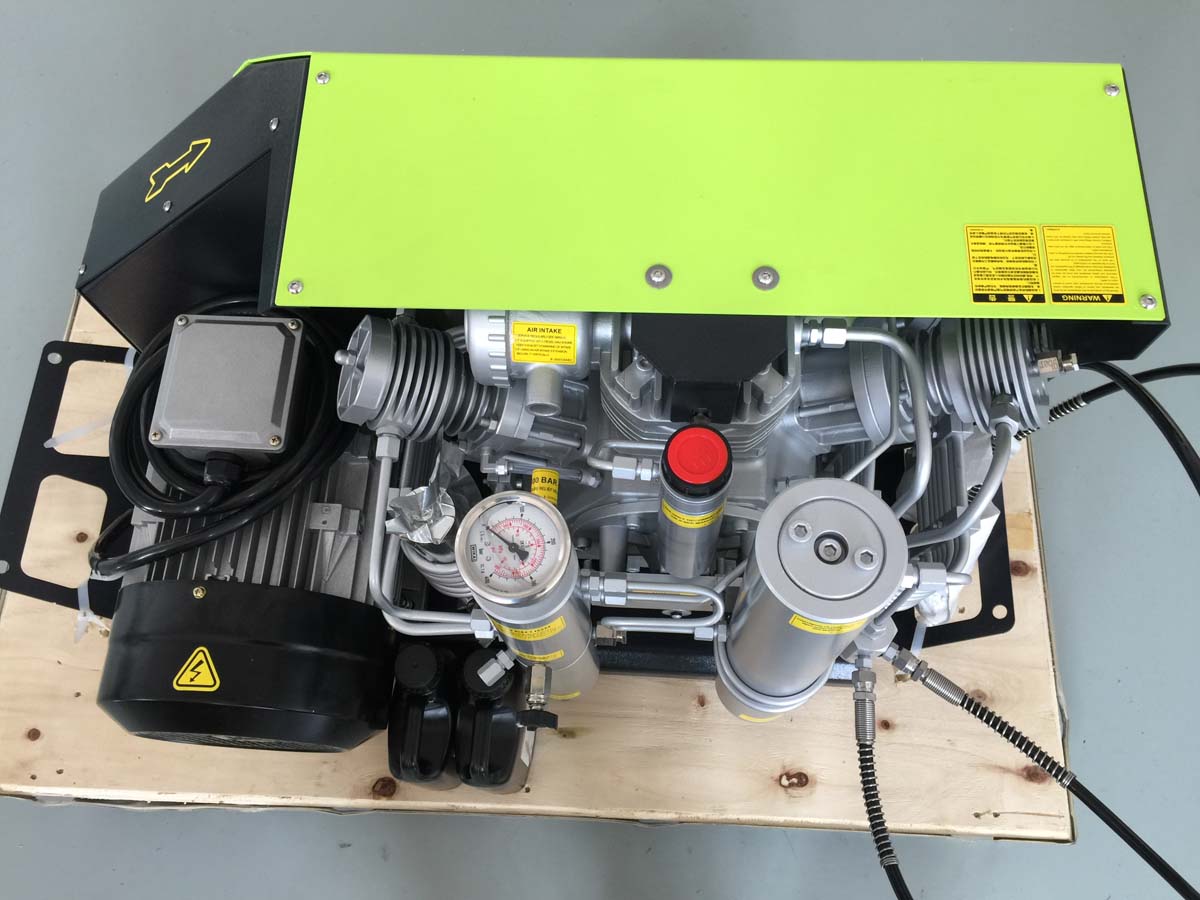

Helium Compressor AD-CN-0.3/E

It is the 18 m3/h Portable Helium Compressor with three cylinder, Net Weight is only 150 kg. It is high-pressure air compressor

  • Air Pressure(option): 100-300 bar
  • Flow Rate: 18 m3/h
  • Power: 7.5 kw
  • RPM: 1500 r/mintues
  • Packed size: 121cmX65cmX84cm
  • Gross Weight: 185 kgs
SKU: compressor-AD-CN-0.3/E Category: Tags: , , ,

Description

Helium Compressor AD-CN-0.3/E

Portable

Motor

Flow Rate

18 m3/h

Dimension

115X 60X70 cm

Helium Gas

Helium gas is not flammable and safe for use, cause it is noble gas not like hydrogen. Hydrogen is much more and cheaper than helium in this planet however it is not safety and most of countries forbid to use.

The price of helium is expensive but now the price keeps rising up, but the need still have too big in market. The bad news is most of helium gas are used for Only One time – the wastage of helium gas is very uneconomical, it is very popular for Helium Balloons and Blimps.

Helium Compressor

With market comes to high competitive,we are thinking how to make business longer and bid more other company to get more business,then we came up with good solutions helium gas recovery and reclaim systems.

It sucks the helium gas out of the balloons&airships, then compresses and pumps it back into helium tank/cylinder for repetitive use.

It is an irreplaceable tool for companies that have to use airship/balloon.

Block

3 Cylinder

Warrant

1 yr

Net Weight

Weight:150 kgs

Power

7.5KW

RPM

1500 r/min

High-Pressure

100-300 bar

Helium Compressor

Outstand Compress solution for your need

Filling units optimise reliability and safety for the dependable supply of clean breathing air or compressed air in all areas of application, ensuring consistent compliance with international air quality standards such as DIN EN 12021 (breathing air standard).

We offers state-of-the-art complete solutions for the field of sports & safety tailor-made to meet the needs of your application range. From compression to treatment and beyond to the distribution of air, breathing air and nitrox.

Application

  • Diving
  • Fire Fighting
  • Defence
  • Paintball Shooting
  • Motor Sport
  • Airship
  • Balloon & Blimp

Gas To Compress

  • Air
  • Breathing Air
  • Helium Gas
  • Nitrogen
  • Argon
  • Oxygen
  • Natural Gas

Compressor Block

high-pressure air compressor
  • Designed and Assembled China
  • 3 Cylinders,3 Stage, Air Cooled block,Stainless steel intercoolers and after cooler
  • Efficient and low energy consumption, Reliable oil lubrication of cylinder surface
  • Oil Water Separator , air cooled

Motor

high-pressure air compresso
  • Power:7.5 kw
  • Voltage: 220-230V 60Hz / 380-400 V 50Hz or 60Hz / 400- 440V 50Hz or 60Hz
  • Phase: 3
  • RPM: 1500 r/min

Fiter System

high-pressure air compresso
  • Tri-chem breathing air purification system with actived carbon/moblecular sivev/hopcalite
  • Disposable purification cartridge is convenient and easy to replace
  • Pressure maintaining valve for optimum air processing
  • Filling valves with hoses

Filling Device and Hose

air compressor
  • The filling device comprises a flxible high-pressure filling hose, filling valve complete (Valve Switch and Pressure Relief Valve) and final guage
  • Swivel hose connection (External Thread G5/8) enable the filling valve to connected the air cylinder quickly, easily and safely
  • The final pressure gauge makes it easy to read off the filling pressure
  • High quality and high-pressure filling hose made of long-life hose material for flexible and safe handing
