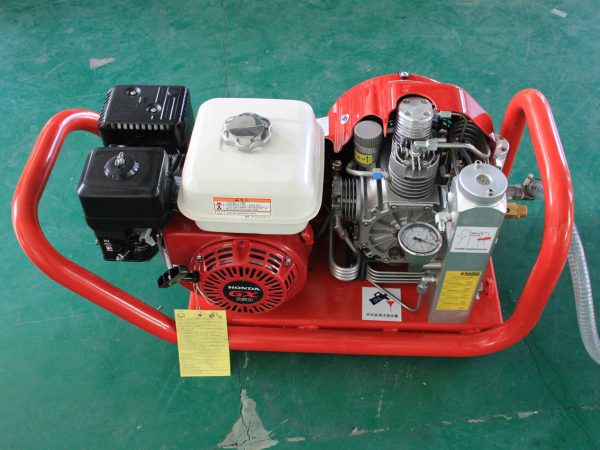

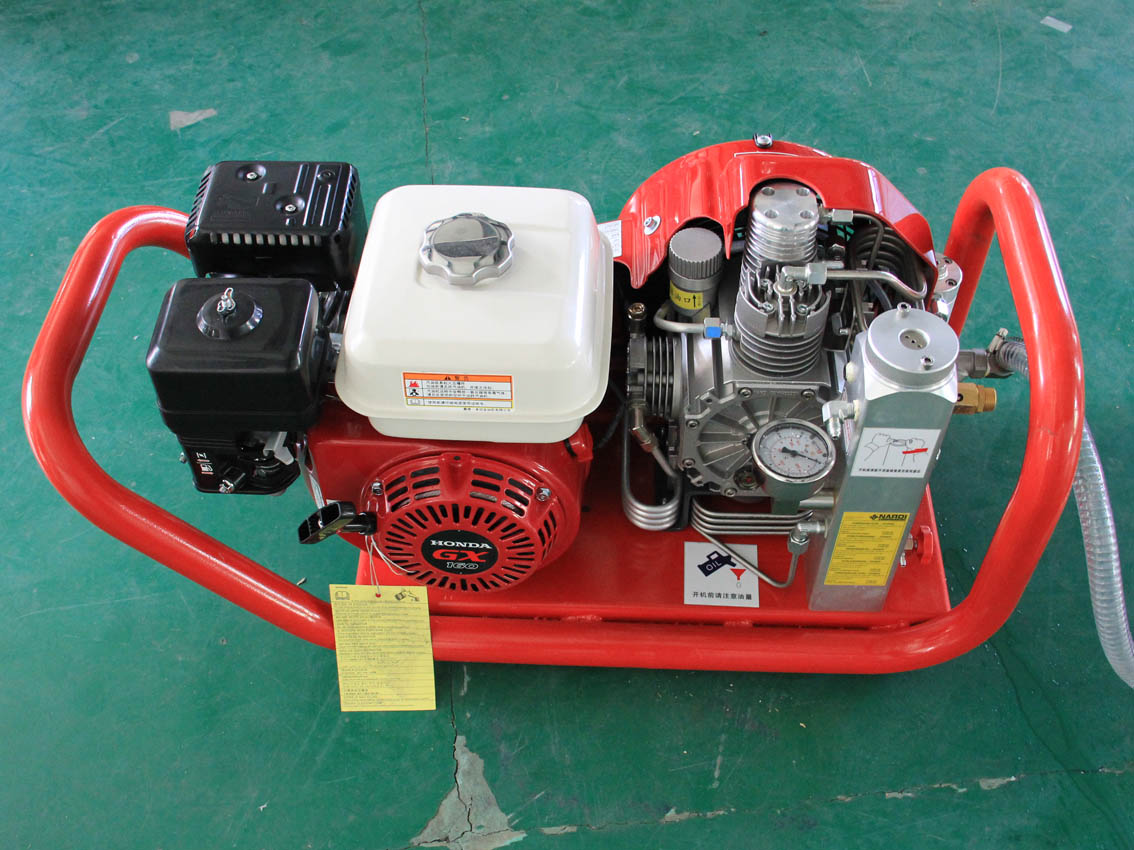

Helium Compressor AD-EN-0.1/GS
It is the Smallest Gasoline Powered High-Pressure Helium Compressor,It has Four Stages and compressor is imported from German. The net Weight is only 50kgs. Flow is 6M3/h.It is very easy to be transported and operate.
- Max Air Pressure: 2100 – 2400 psi/15 -16.5 Mpa
Or option 100-300 bar - Flow Rate: 6 m3/h
- Power: 4HP|3 KW
- RPM: 2100 r/min
- Packed Size: 110cmX55cmX67cm
- Net Weight: 50 kgs
- Gross Weight: 82 kgs
Overview>
Description
Helium Compressor AD-EN-0.1/GS
Portable
Petrol Engine
Flow Rate
6 m3/h
Dimension
85X40X39cm
Helium Gas
Helium gas is not flammable and safe for use, cause it is noble gas not like hydrogen. Hydrogen is much more and cheaper than helium in this planet however it is not safety and most of countries forbid to use.
The price of helium is expensive but now the price keeps rising up, but the need still have too big in market. The bad news is most of helium gas are used for Only One time – the wastage of helium gas is very uneconomical, it is very popular for Helium Balloons and Blimps.
Helium Compressor
With market comes to high competitive,we are thinking how to make business longer and bid more other company to get more business,then we came up with good solutions helium gas recovery and reclaim systems.

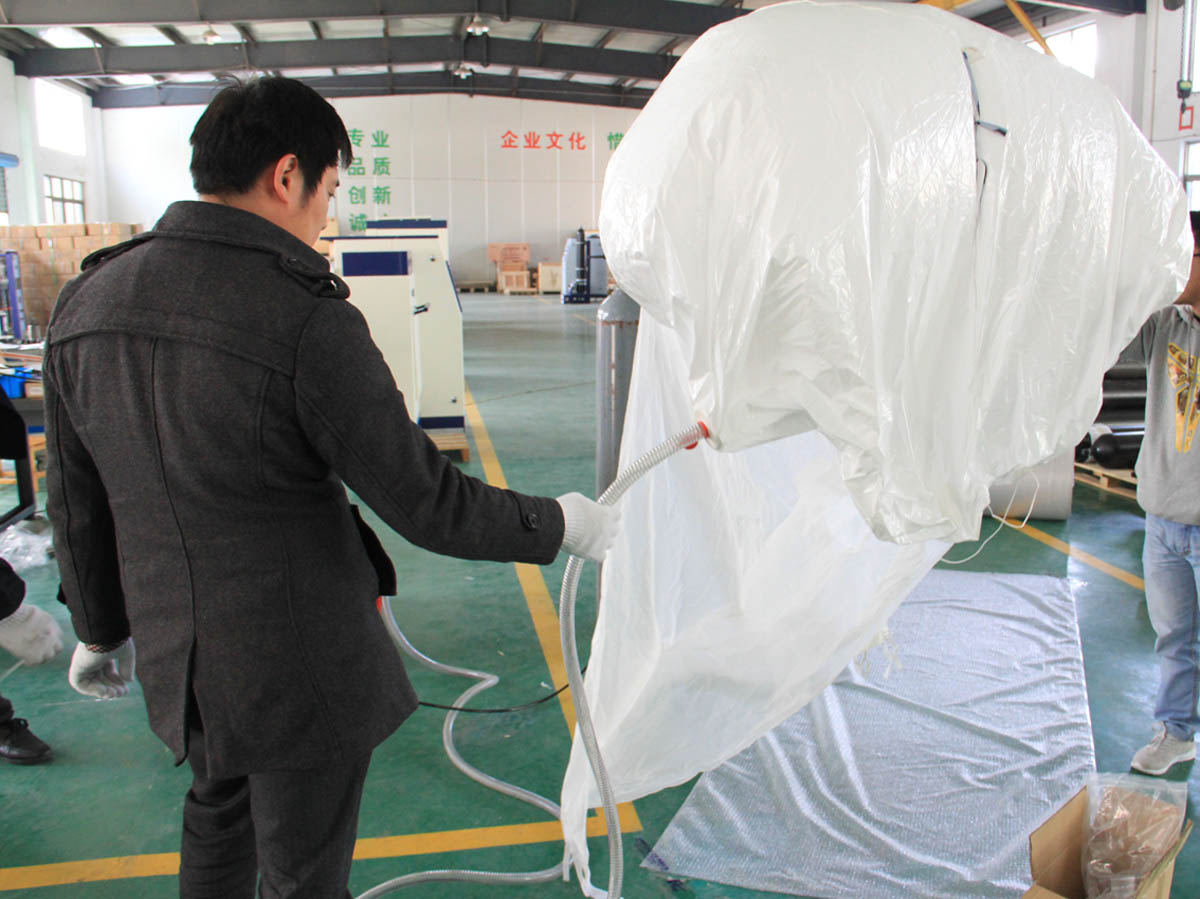

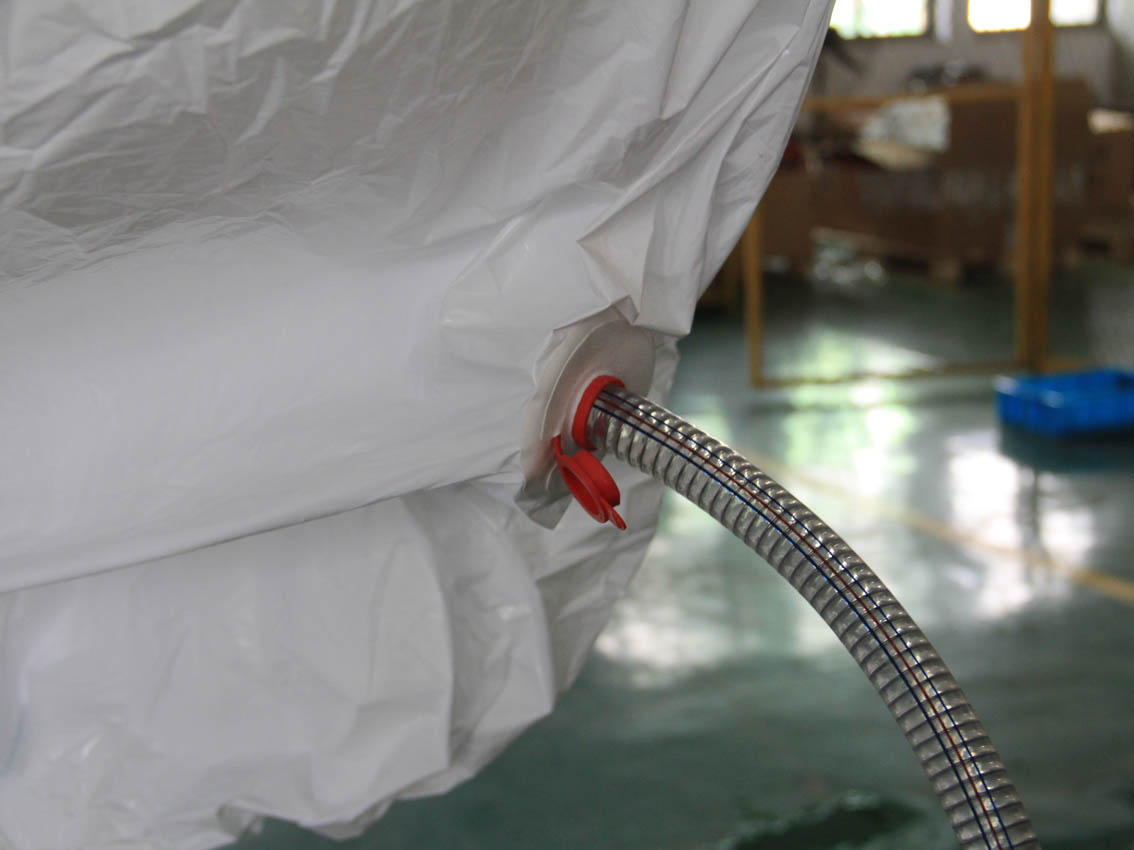

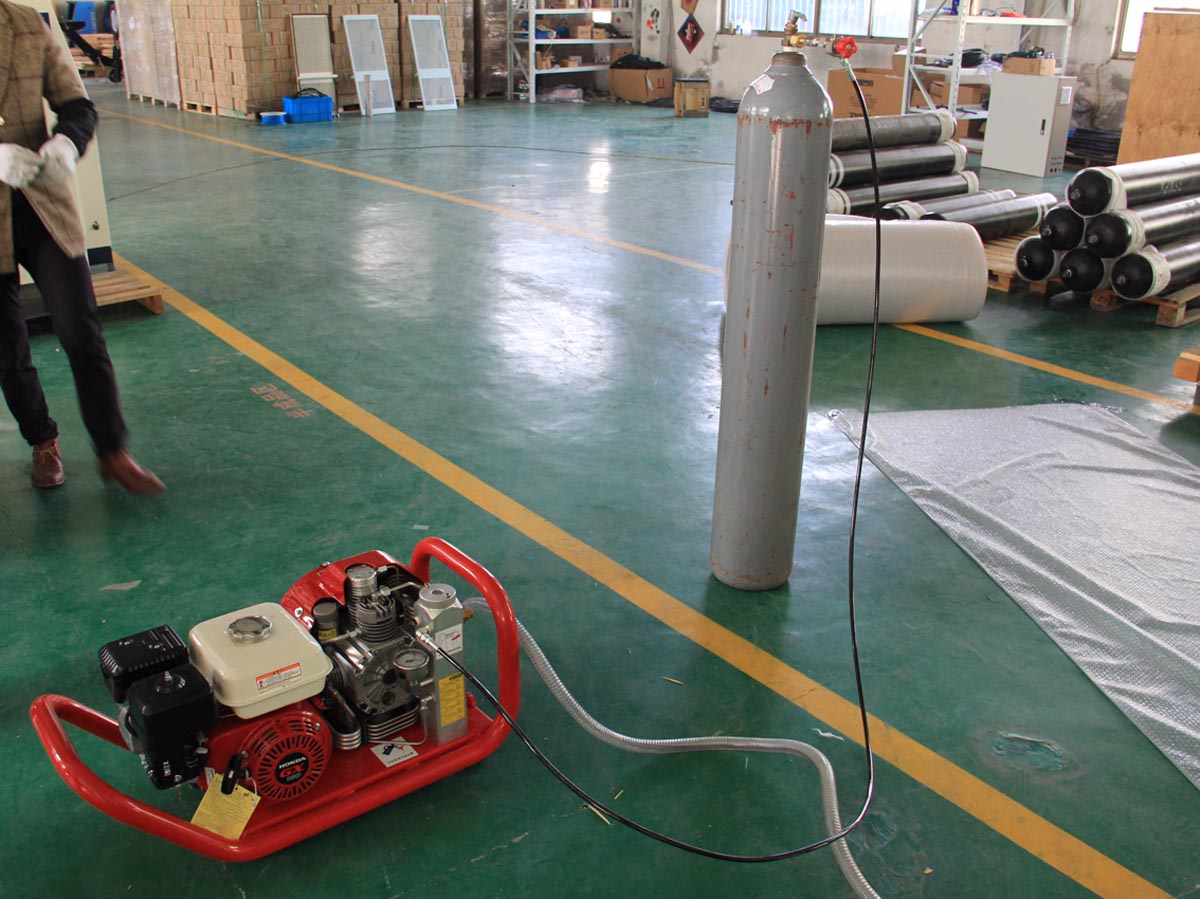

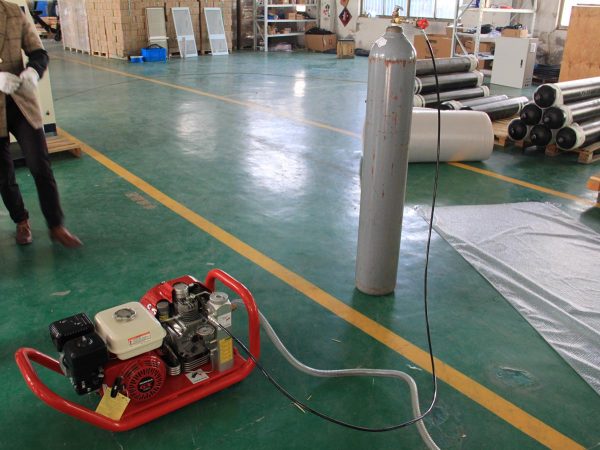

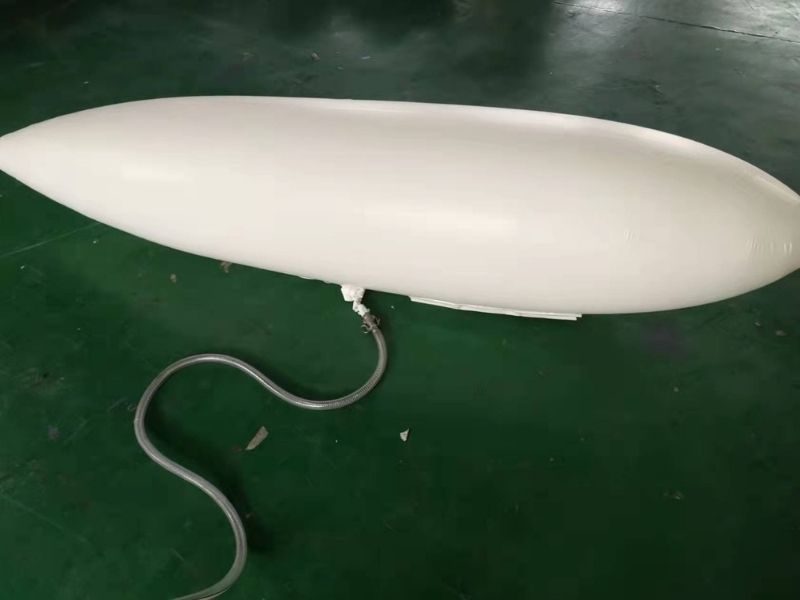

It sucks the helium gas out of the balloons&airships, then compresses and pumps it back into helium tank/cylinder for repetitive use.
It is an irreplaceable tool for companies that have to use airship/balloon.
Block
4 Cylinder
Warrant
1 yr
Net Weight
Weight:50 kgs
Power
4 HP | 3 KW
RPM
2100 r/min
High-Pressure
100-300 bar
Performance
Outstand Compress solution for your need
Filling units optimise reliability and safety for the dependable supply of clean breathing air or compressed air in all areas of application, ensuring consistent compliance with international air quality standards such as DIN EN 12021 (breathing air standard).
We offers state-of-the-art complete solutions for the field of sports & safety tailor-made to meet the needs of your application range. From compression to treatment and beyond to the distribution of air, breathing air and nitrox.
Application
- Diving
- Fire Fighting
- Defence
- Paintball Shooting
- Motor Sport
- Airship
- Balloon & Blimp
Gas To Compress
- Air
- Breathing Air
- Helium Gas
- Nitrogen
- Argon
- Oxygen
- Natural Gas

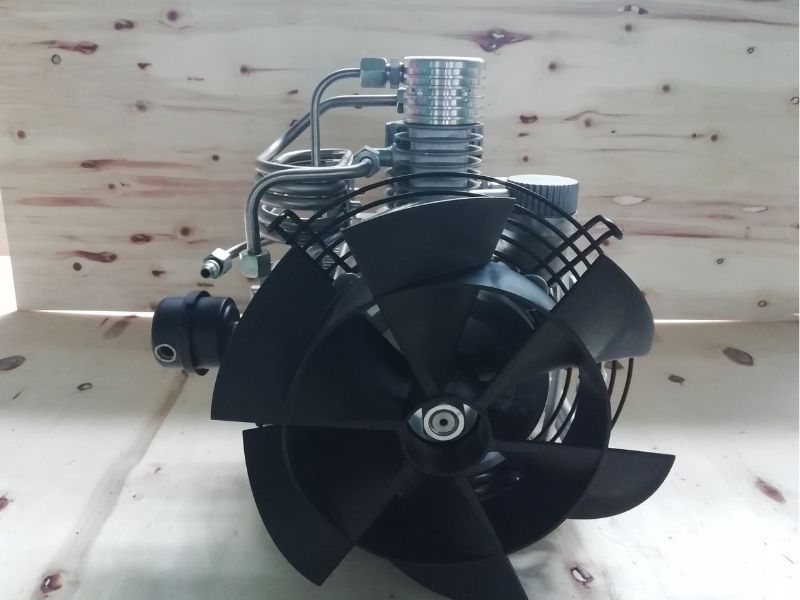

Compressor Block
- Designed and Assembled Italy , 15 years Warrant
- 4 Cylinders,4 Stage, Air Cooled block,Stainless steel intercoolers and after cooler
- Efficient and low energy consumption, Reliable oil lubrication of cylinder surface
- Oil Water Separator, air cooled

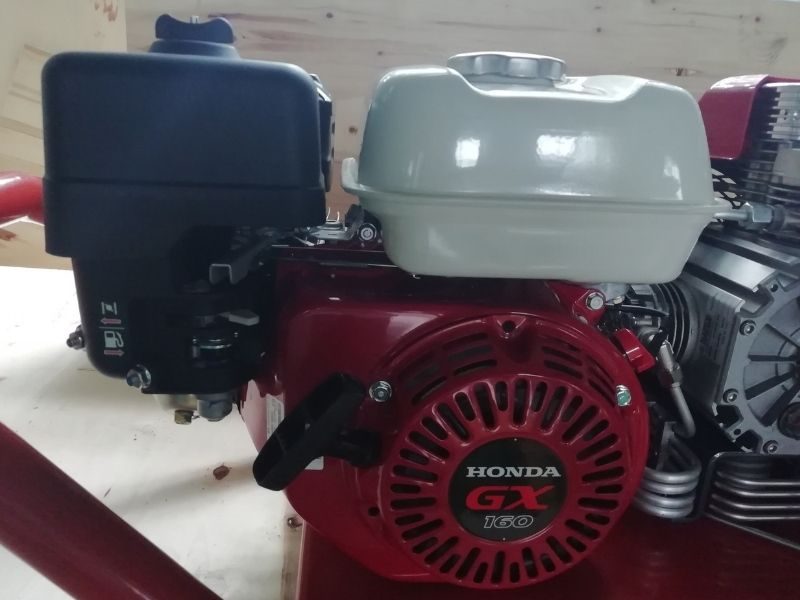

Petrol Engine
- Model: Honda JH168F(GX160)
- Engine Type: Single Cylinder,4-stroke, Forced Air Cooling OHV
- Displacement(mL): 163
- Rated Power Power KW-r/min: IOB 3.05 -3600
- Net Weight: 15 kg S Type PTO
- Oil Capacity 0.61 US qt. (0.58 L)
- Fuel Tank Capacity 3.3 U.S. qts (3.1 liters)
Fiter System
- Tri-chem breathing air purification system with actived carbon/moblecular sivev/hopcalite
- Disposable purification cartridge is convenient and easy to replace
- Pressure maintaining valve for optimum air processing
- Filling valves with hoses
- Inlet filter/Silencer

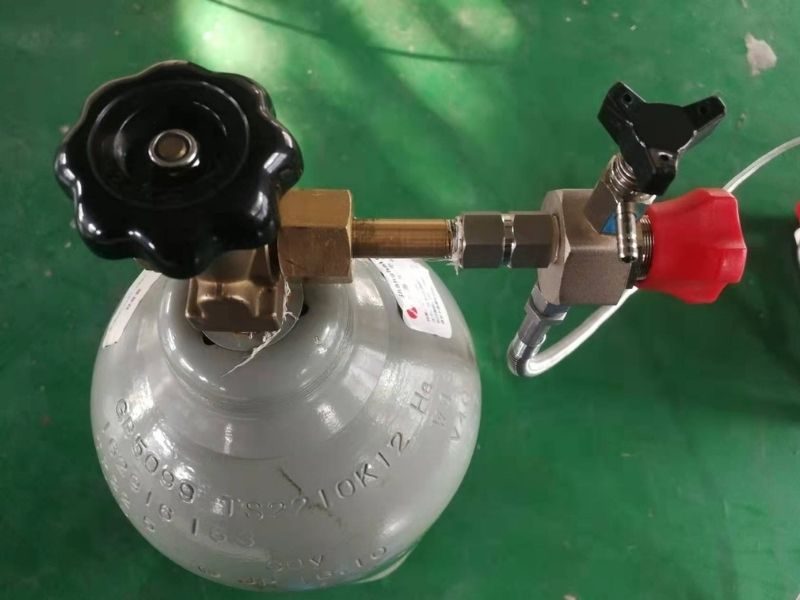

Filling Device and Hose
- High quality and high-pressure filling hose made of long-life hose material for flexible and safe handing.
- Swivel hose connection enable the filling valve to connected the air cylinder quickly, easily and safely
- The filling device comprises a flexible high-pressure filling hose and filling valve complete.
- Two released air valves to keep helium gas more purifier.
- A filling hose connector with a CGA580 thread (US Standard) or G5/8 thread
