High Quality

Compressor – Revelution

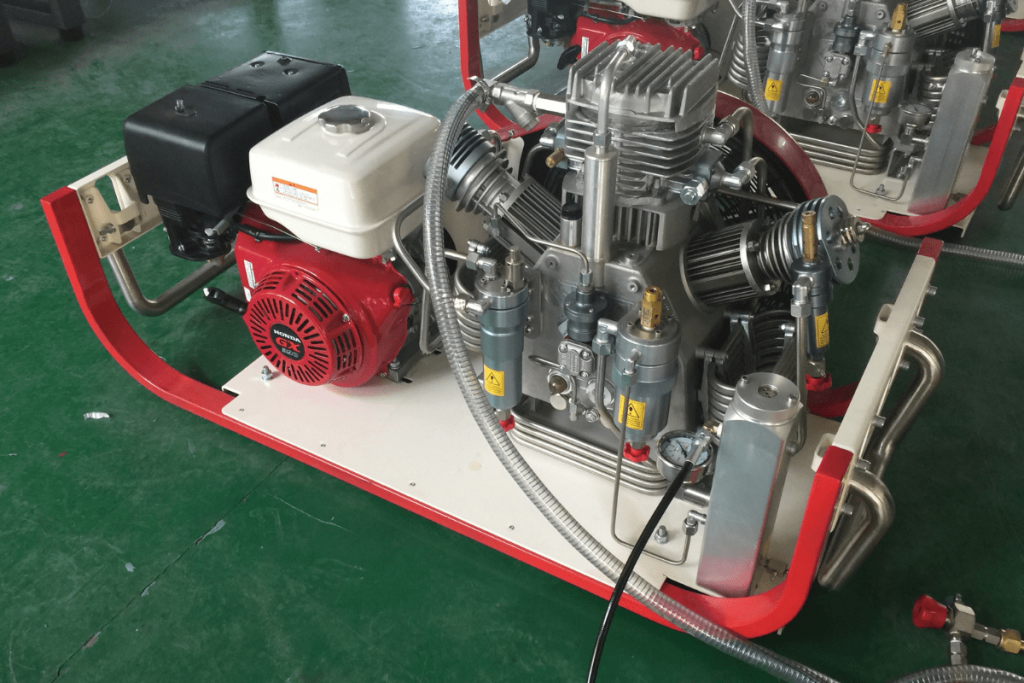

AD En 350L Section 1 | Cinema Balloons, Light Balloons,Grip Cloud Balloons, Helium Compressor, Rc Blimps, Inflatable Tent , Car Cover - Supplier

Characteristics

Available flow rate in 21m3 /hour, with electric motor single phase 220V, three phase 380V or engine Honda

Available in high-pressure 150 bar |2175 psi |15 Mpa or 250 bar |3625 psi| 25Mpa or customized

01

The pumping units are equipped with condensate separators between each compression stage to remove more impurities and condensation can.

02

Lubrication is mainly splash of oil, and can be integrated with an oil pump for lubrication; processing and treatment of components is always in step with new technologies, extending the life and reliability of each individual component of the compressor. Low vibration and low noise, low power consumption and high performance with even higher efficiencies .

03

Latest generation materials with long-life surface and thermal treatments, This light-weight portable range is designed to give end users the best solution in terms of quality and performance. With its small dimensions it is easy to carry around and thanks to its reliability and great performance it is suitable for both private and professional use.

Compressor Block

IMG 4680 1200 | Cinema Balloons, Light Balloons,Grip Cloud Balloons, Helium Compressor, Rc Blimps, Inflatable Tent , Car Cover - Supplier
  • Designed and Assembled Italy , 1 years Warrant
  • 4 Cylinders,4 Stage, Air Cooled block,Stainless steel intercoolers and after cooler
  • Efficient and low energy consumption, Reliable oil lubrication of cylinder surface
  • Oil Water Separator, air cooled
  • 350L/m

Fiter ATL System

IMG 5215 1200 | Cinema Balloons, Light Balloons,Grip Cloud Balloons, Helium Compressor, Rc Blimps, Inflatable Tent , Car Cover - Supplier
  • Tri-chem breathing air purification system with actived carbon/moblecular sivev/hopcalite
  • Disposable purification cartridge is convenient and easy to replace
  • Pressure maintaining valve for optimum air processing
  • Filling valves with hoses
  • Inlet filter/Silencer

Filling Device and Hose

IMG 5171 1200 | Cinema Balloons, Light Balloons,Grip Cloud Balloons, Helium Compressor, Rc Blimps, Inflatable Tent , Car Cover - Supplier
  • High quality and high-pressure filling hose made of long-life hose material for flexible and safe handing.
  • Swivel hose connection enable the filling valve to connected the air cylinder quickly, easily and safely
  • The filling device comprises a flxible high-pressure filling hose and filling valve complete.
  • Two released valve to keep helium gas more purier.
  • Connector External Thread G5/8) or US CGA 580 thread option with Helium Cylinder

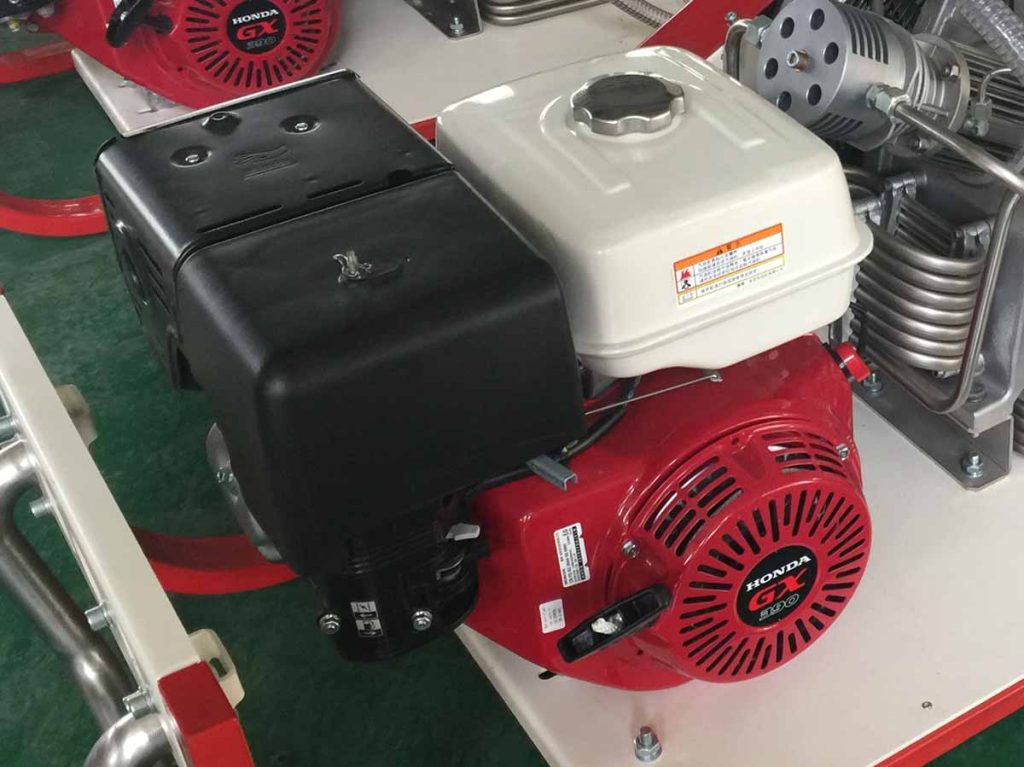

Honda Engine

IMG 4668 1200 | Cinema Balloons, Light Balloons,Grip Cloud Balloons, Helium Compressor, Rc Blimps, Inflatable Tent , Car Cover - Supplier
  • Model: Honda GX 390
  • Engine Type: Air-cooled 4-stroke OHV
  • Net Power Output*: 11.7 HP (8.7 kW) @ 3,600 rpm
  • Oil Capacity: 1.16 US qt (1.1 L)
  • Fuel Tank Capacity: 6.4 U.S. qts (6.1 liters)
