Portable

Petrol Engine

Flow Rate

6 m3/h

Dimension

85X40X39cm

Helium Gas

Helium gas is not flammable and safe for use, cause it is noble gas not like hydrogen. Hydrogen is much more and cheaper than helium in this planet however it is not safety and most of countries forbid to use.

The price of helium is expensive but now the price keeps rising up, but the need still have too big in market. The bad news is most of helium gas are used for Only One time – the wastage of helium gas is very uneconomical, it is very popular for Helium Balloons and Blimps.

Helium Compressor

With market comes to high competitive,we are thinking how to make business longer and bid more other company to get more business,then we came up with good solutions helium gas recovery and reclaim systems.

It sucks the helium gas out of the balloons&airships, then compresses and pumps it back into helium tank/cylinder for repetitive use.

It is an irreplaceable tool for companies that have to use airship/balloon.

Block

4 Cylinder

Warrant

1 yr

Net Weight

Weight:50 kgs

Power

4 HP| 3KW

RPM

2100 r/min

High-Pressure

100-300 bar

Performace

Outstand Compress solution for your need

Filling units optimise reliability and safety for the dependable supply of clean breathing air or compressed air in all areas of application, ensuring consistent compliance with international air quality standards such as DIN EN 12021 (breathing air standard).

We offers state-of-the-art complete solutions for the field of sports & safety tailor-made to meet the needs of your application range. From compression to treatment and beyond to the distribution of air, breathing air and nitrox.

Application

  • Diving
  • Fire Fighting
  • Defence
  • Paintball Shooting
  • Motor Sport
  • Airship
  • Balloon & Blimp

Gas To Compress

  • Air
  • Breathing Air
  • Helium Gas
  • Nitrogen
  • Argon
  • Oxygen
  • Natural Gas

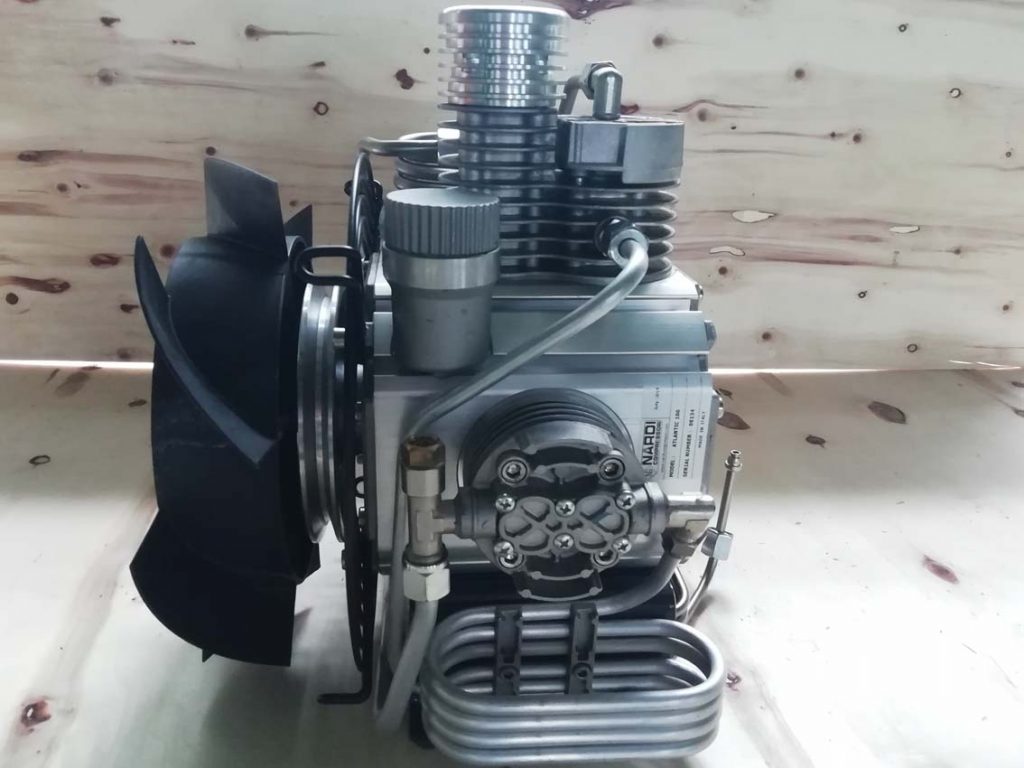

Compressor Block

Compressor AD-EN-0.1/GS
  • Designed and Assembled Italy , 15 years Warrant
  • 4 Cylinders,4 Stage, Air Cooled block,Stainless steel intercoolers and after cooler
  • Efficient and low energy consumption, Reliable oil lubrication of cylinder surface
  • Oil Water Separator, air cooled

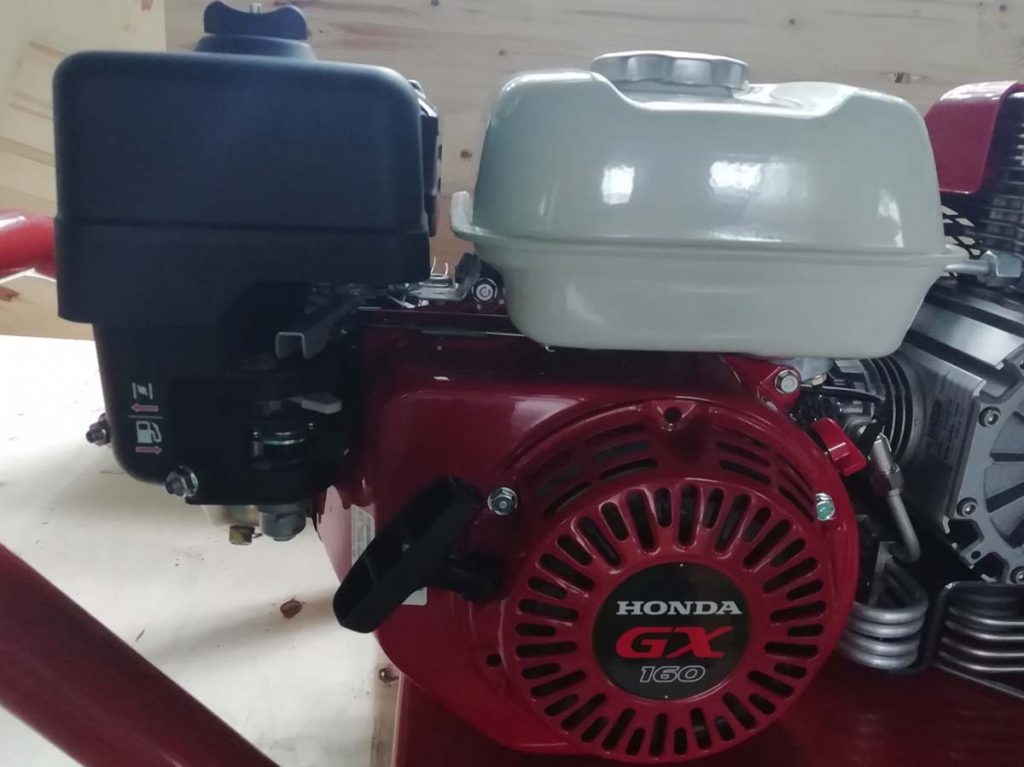

Petrol Engine

Compressor AD-EN-0.1/GS
  • Model: Honda JH168F(GX160)
  • Engine Type: Single Cylinder,4-stroke, Forced Air Cooling OHV
  • Displacement(mL): 163
  • Rated Power Power KW-r/min: IOB 3.05 -3600
  • Net Weight: 15 kg S Type PTO
  • Oil Capacity 0.61 US qt. (0.58 L)
  • Fuel Tank Capacity 3.3 U.S. qts (3.1 liters)

Fiter System

Compressor AD-EN-0.1/GS
  • Tri-chem breathing air purification system with actived carbon/moblecular sivev/hopcalite
  • Disposable purification cartridge is convenient and easy to replace
  • Pressure maintaining valve for optimum air processing
  • Filling valves with hoses
  • Inlet filter/Silencer

Filling Device and Hose

Compressor AD-EN-0.1/GS
  • High quality and high-pressure filling hose made of long-life hose material for flexible and safe handing.
  • Swivel hose connection enable the filling valve to connected the air cylinder quickly, easily and safely
  • The filling device comprises a flexible high-pressure filling hose and filling valve complete.
  • Two released air valve to keep helium gas more purifier.
  • A filling hose connector with a CGA580 thread (US Standard) or G5/8 thread
